Quantity: 1
Year of manufacture: 1973
Price: on request
Manufacturer: TMP VORONEZH
Model: K8344,2500T

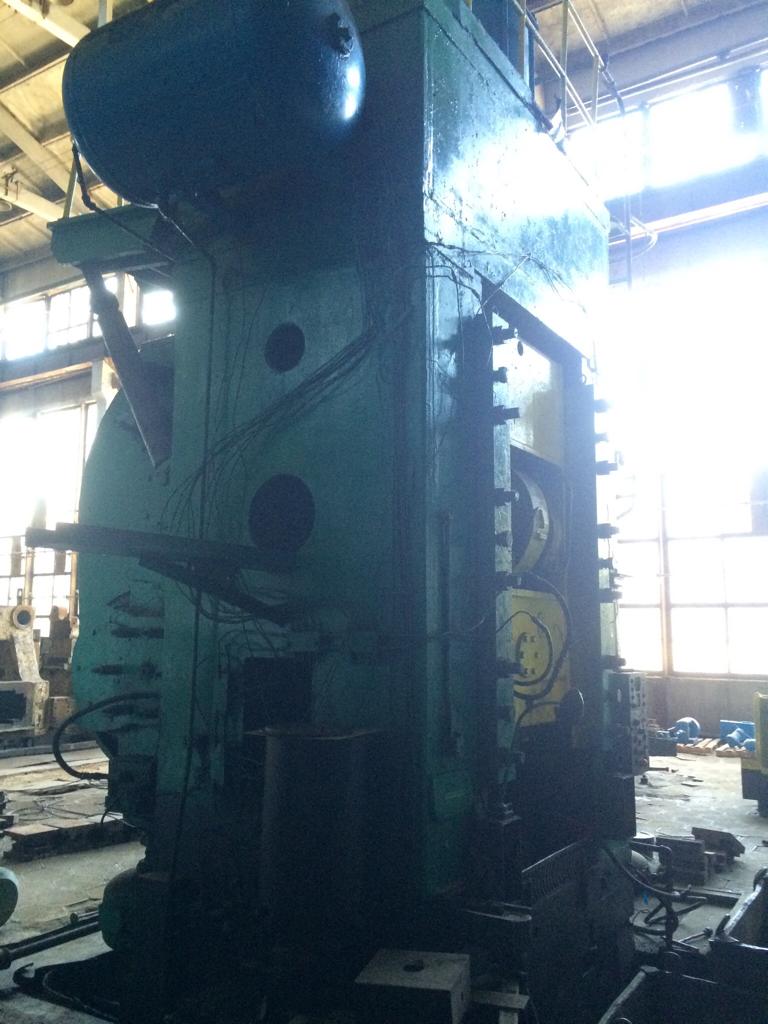

Type of machine: Knuckle joint press
Description:
Capacity: 2500 ton
Slider stroke: 190 mm
Size of a working course of slider before its extreme bottom position corresponding nominal capacity: 4.5 mm
Number of slider courses per minute: 20
Maximum distance between table and slider (in lower position of slider): 800 mm
Distance adjustment between table and slider: 20 mm
Table overall dimensions:
- from front to rear: 1400 mm
- from left to right: 1250 mm
Thickness of a under-forginig plate: 230 mm
Hole diameter in a table: 125 mm
The size of a slider in front - back: 900 mm
Lower eliminator stroke length: 190 mm
force of the bottom pusher: 75 ton
Distance between railings: 950 mm
Course of a pusher in a slider: 15 mm
Capacity of a pusher in a slider: 25 ton
Admissible number of starts per minute: 10
Machine overall dimensions
- length: 3910 mm
- width: 3920 mm
- height: 6220 mm
Press weight: 97715 kg
